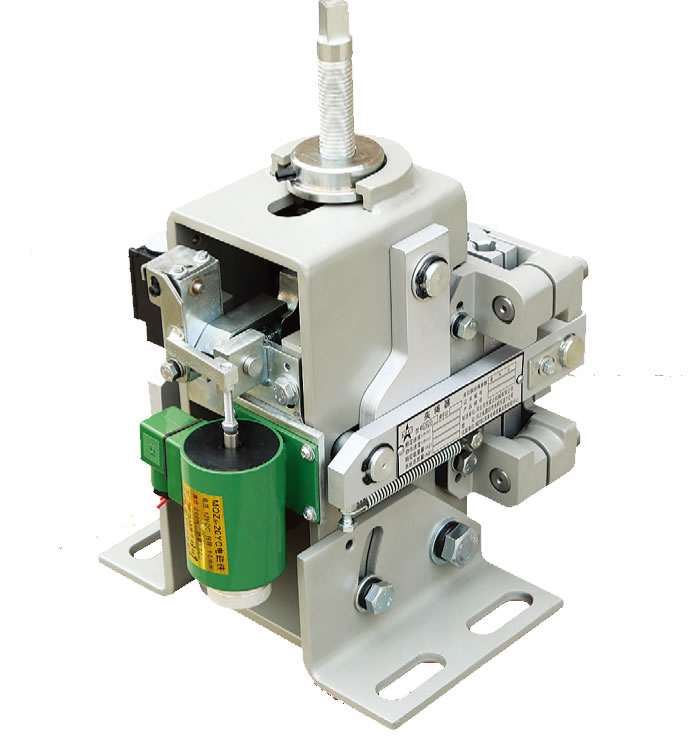

JS〇5A(JS〇5A(Y)) Rope Brake
Technical Specifications:(for ratio1: 1.2: 1 )
1.Rated Speed:a)1:1 V: 0.25~5.0m/s
b)2:1 V: 0.125~2.5m/s
2.Rated load:a)1:1 Q: 300〜1250kg
b)2:1 Q: 600〜2500kg
3.System mass:a) 1: 1 950〜5715kg
b)2:1 1900〜11430kg
For details, call "86-316-2018793"
Information
This rope brake is an innovated product, can be used as an as ascending car over speed protection device,which falls into two types as per the triggering way, ie. mechanical and electromagnetic. The mechanical rope brake : The speed governor drives the braking wire component to trigger the rope brake which will be used together with XS12A and XS12B over speed governor, the electromagnetic rope brake will be used together with XS16、XS18、XS18A over speed governor.

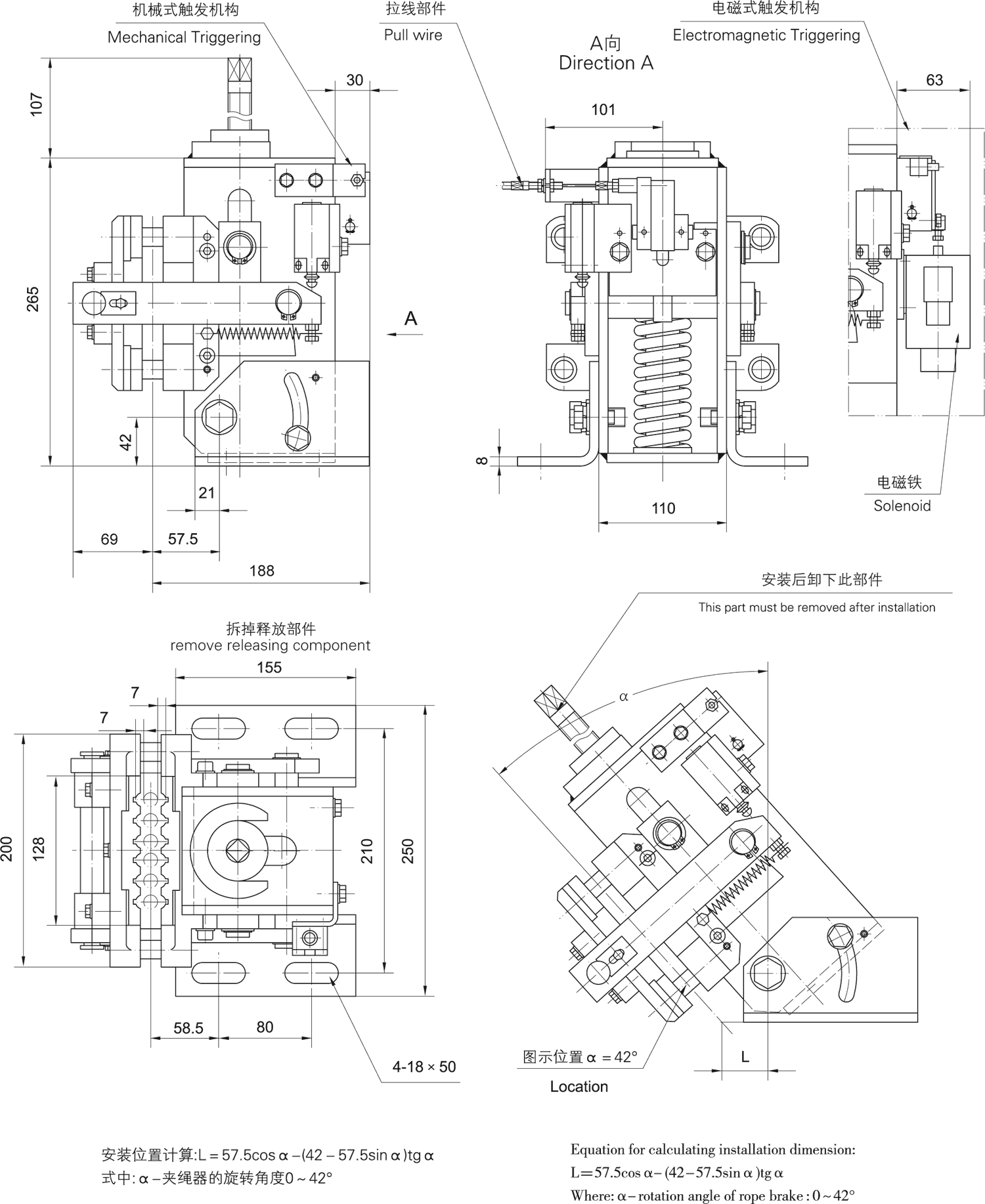

The compression springs are used on this rope brake to provide working force ,which is enlarged by wedge iron and rollers. The front of the braking block move towards the other plate and clamp the ropes to stop the car safely and hold it still there. The rope brake is compact in structure, convenient to install and the installation angle can be adjusted within 0〜42o.
Other specifications for mechanical rope brake:
1、The braking wire travel when the eccentric wheel is released :≤8mm。
2、Releasing force of the eccentric wheel:JSQ5A:50〜120N;JSQ5A (丫):20〜50N
3、Tripping distance of the governor:15-25mm
4、Force of the braking wire of governor:≥240N
Other specifications for electromagnetic rope brake
1、Rated Voltage:DC12V
2、Power:≤50W
3、Current:≤3A
