Brief Introductions

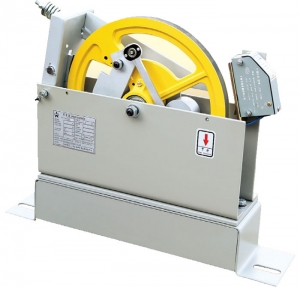

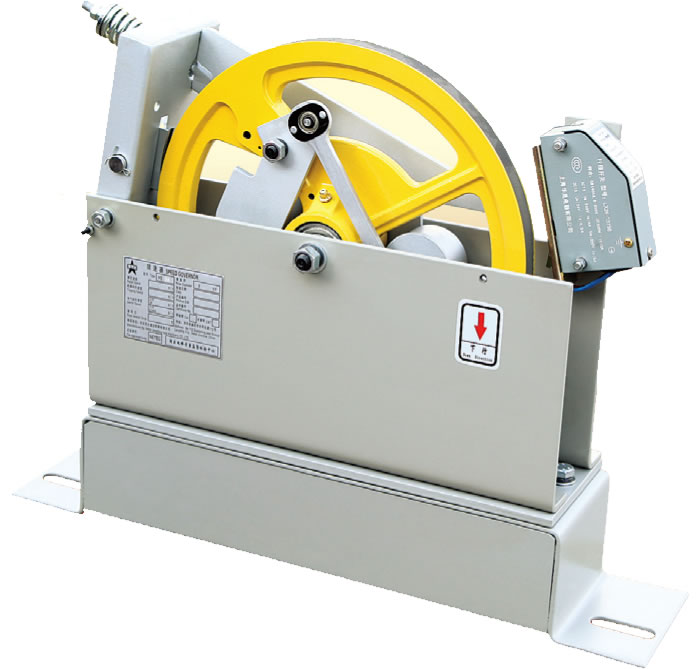

Applied on the elevator either with remote conrol rope brake asascending car over speed protection device.

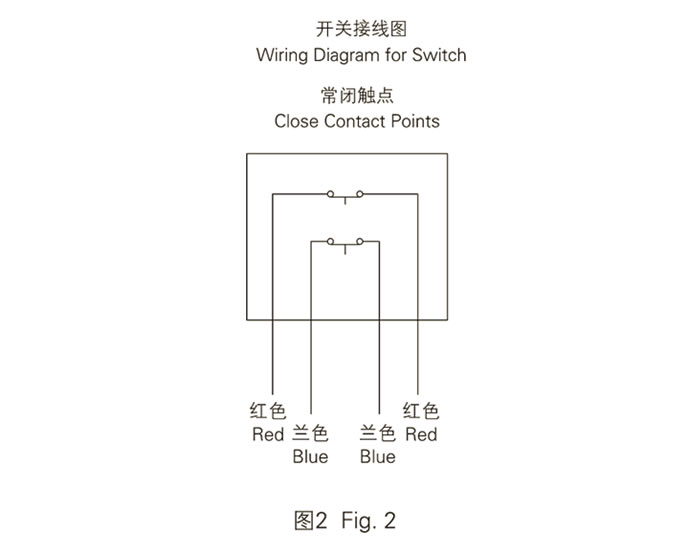

The contact switch of this governor has two groups of contact points, is bi- directional, one of which (red wire) controls the brake of traction machine,another one (blue wire) control the rope brake which is used as ascending car protection device. Please refer to Fig. 2 for wiring of switch forXS18.
