1.Rated Speed:0.5-1.75m/s
2.Rope DiaΦ:0 6mm
3.Rope tension force:750±250N
4.Sheave diameterΦ:200mm
5.Car Travel:H≤80M
If Tensile for Tension Device is:300N
6.Solenoid:standard type DC24V
optional type AC220V

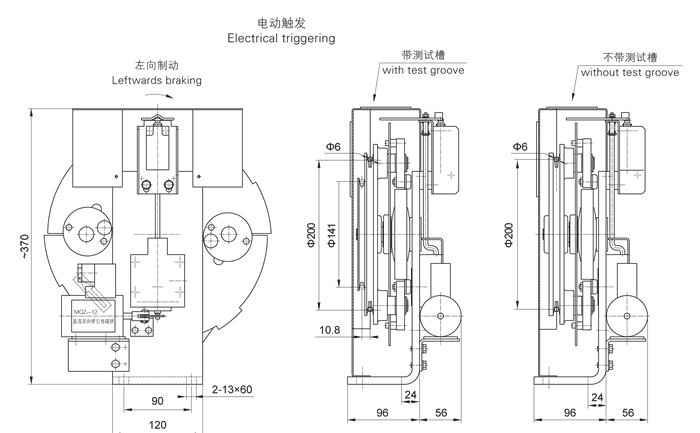

Specially installed on the roomless elevato triggering ways, i. e. braking wire triggering(manually)and reset，and electri triggering & electrical reset.
