1.Rated Speed:2.0m/s.2.5m/s
2.Rope tension forceF:750±250N
3.Rope DiaΦ:8mm

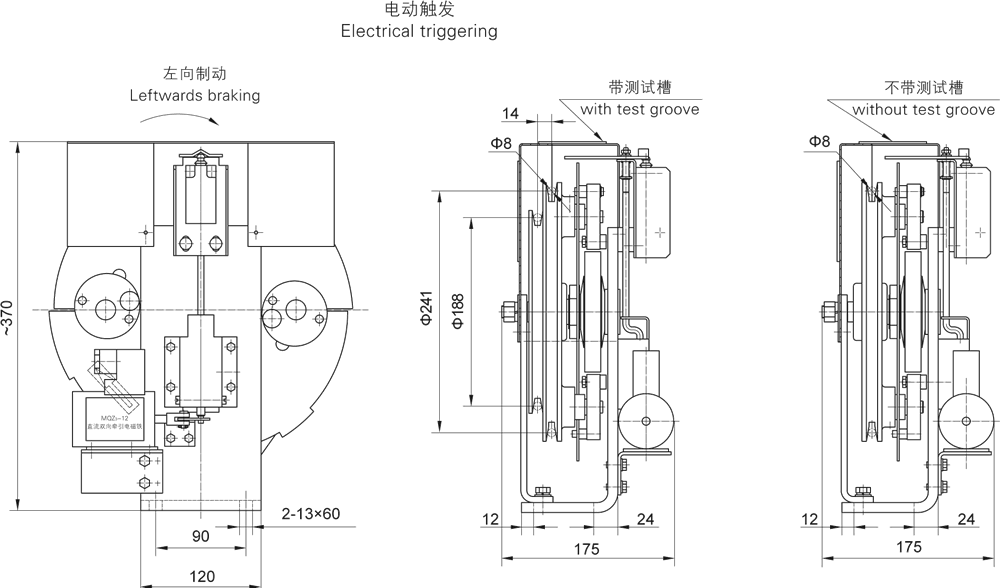

4.Sheave diameterΦ:241mm
5.Car Travel:≤110m
If Tensile for Tension Device is:450N
Note:Then maimum distance between speed governor and tension wheel:115m

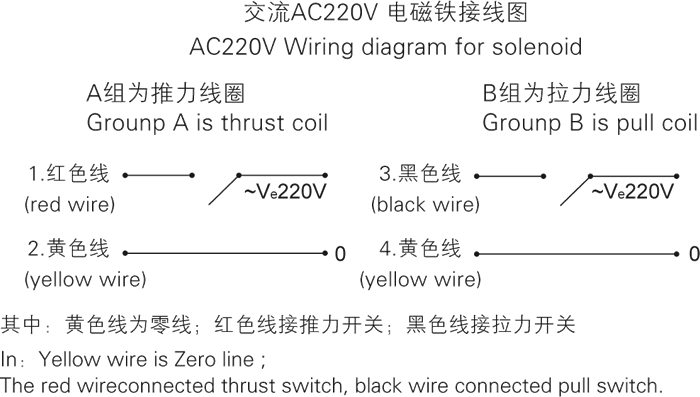

6.Solenoid:standard type DC24V
optional type AC220V

installed on the roomless elevators.Two triggering ways, i. e. braking wire triggering(manually)and reset，and electrical triggering & electrical reset.
