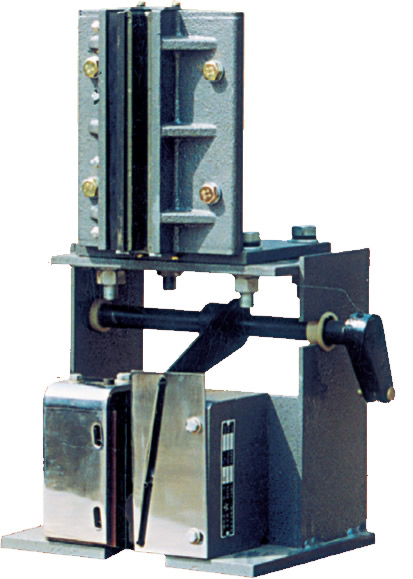

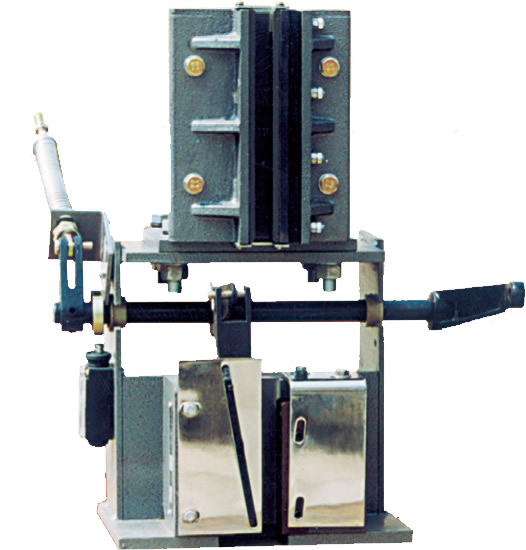

AQZIV Safety Brake Device
1.Rated Speed:V≤0.63m/s
2.Allowable gross mass:(P+Q)1:≤8000kg (14000kg)
3.Width of guide rail:16mm
Structure characteristic：

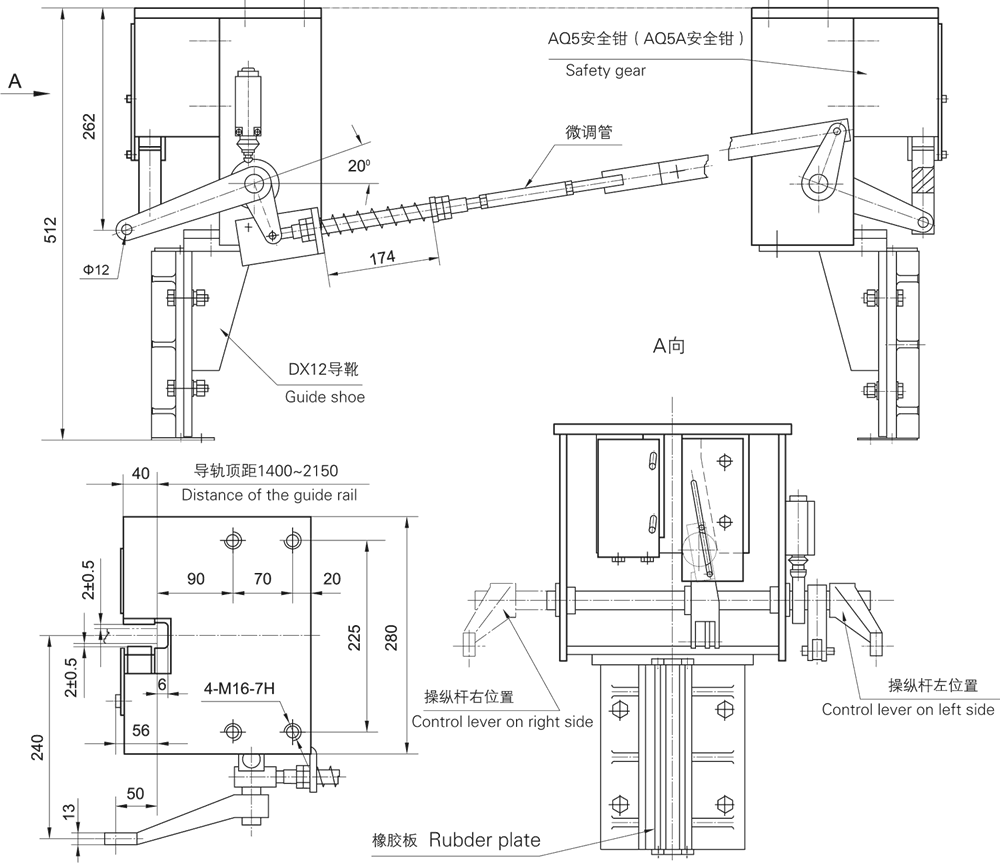

1.With control mechanism and guiding device
2.Control lever place：Two type of left or right
Notes：Please mention the distance of the guide rail and left & right layout on your PO
For details, call "86-316-2018793"
Note：
When the lifting height is not more thean 150m and the lift acceleration and deceleration are not more than 1.0m/s2, the length of compressed spring is 168mm and the rope tension is not less than 1000N； When the lifting height is greater than 150m and is not more than 240m or the lift acceleration and deceleration are more than 1.0m/s2，the length of compressed spring is 155mm and the rope tension is not less than 1500N.
