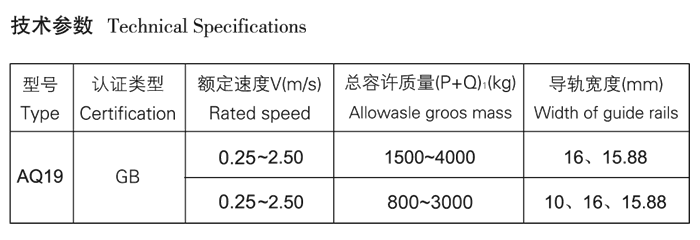

1.Rated Speed:V:0.25~2.5m/s
2.Allowable gross mass:(P+Q)₁1500-4000kg.800-3000kg
3.Width of guide rail:10.15.88.16mm
Notes：Please mention the distance of the guide rail and left & right layout on your PO

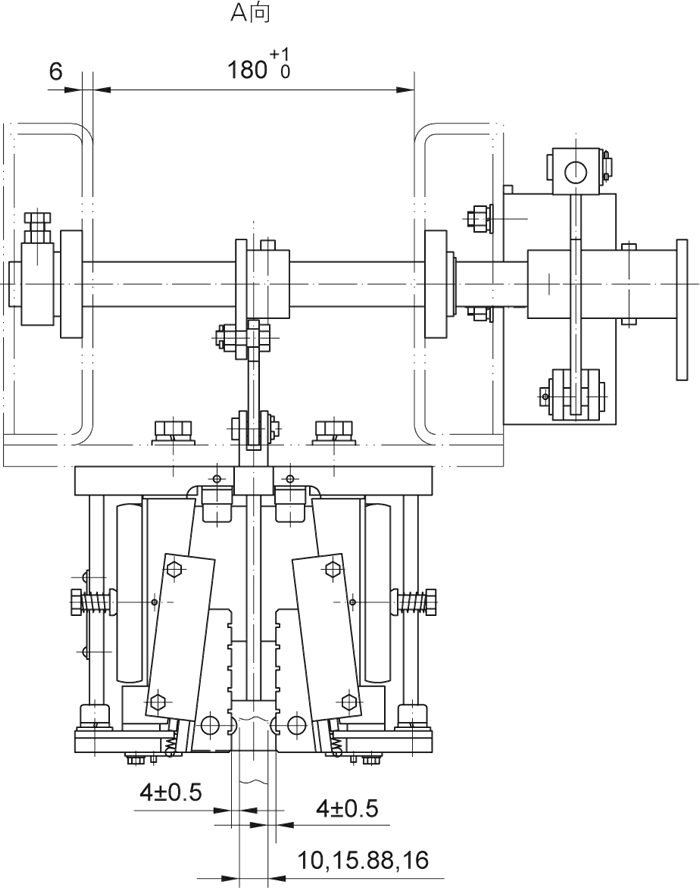

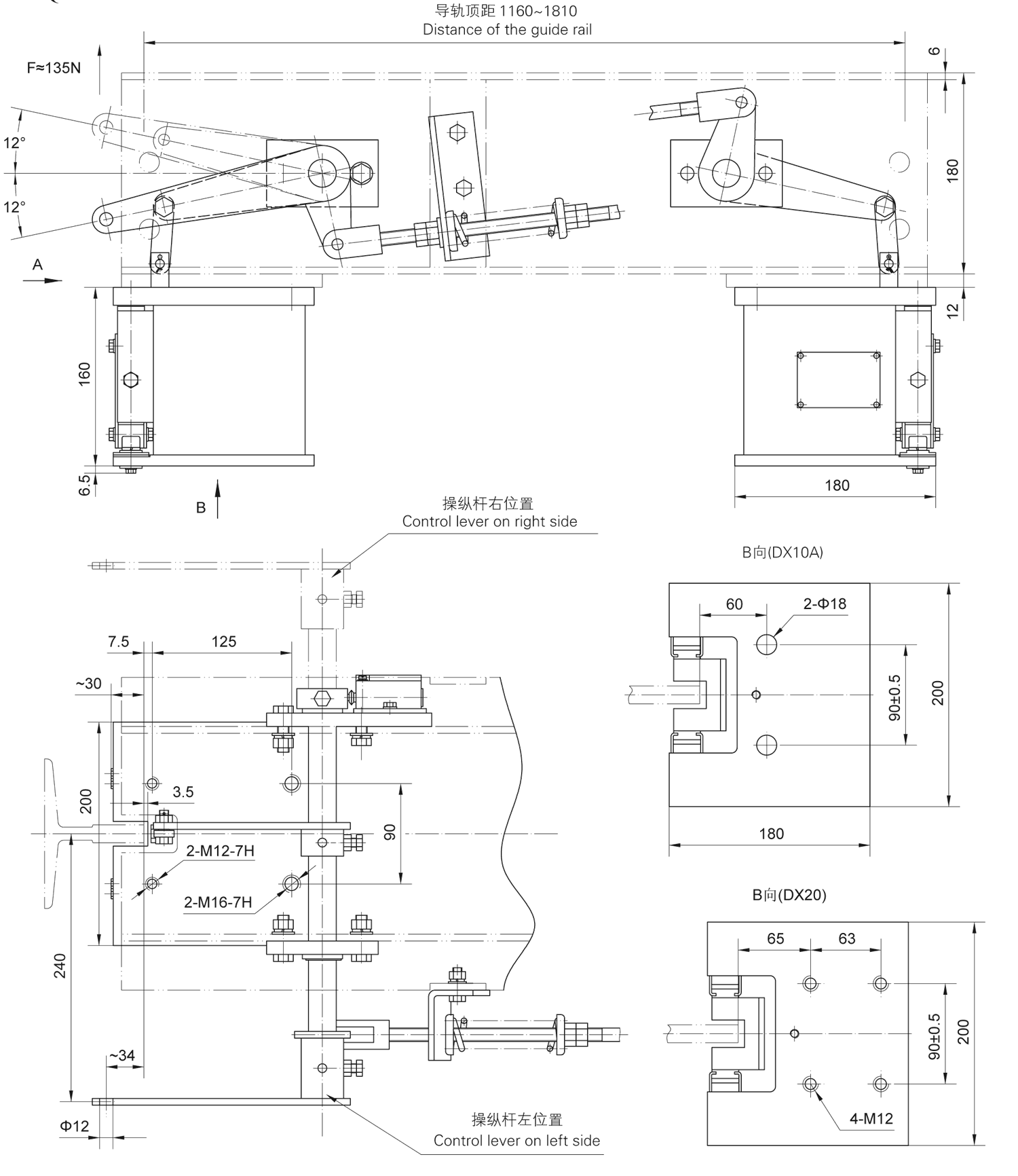

When (P+Q)i<2500kg, DX10A guide shoes will be installed, as the A direction drawing (DX10A) shown, and when(P+Q)i>2500kg, it is recommended that guide shoe DX20 should be used , as the drawing B direction (DX20) shown
